McCrometer MW600
Model MW600 Weld-On Saddle Meter is machined to the same radius as the tube on which it is to be installed to provide accurate alignment. The Model MW600 is manufactured to comply with applicable provisions of American Water Works Association Standard No. C704-02 for propeller-type flowmeters. As with all McCrometer propeller flowmeters, standard features include a magnetically coupled drive, instantaneous flowrate indicator and straight reading, six-digit totalizer.
- • Designed to operate in real-world environments, these flowmeters can measure turbulent flows and fluids containing debris, suspended solids, and other contaminants accurately
- • 4-48” line sizes
- • Long-lasting Stainless Steel Ball Bearings
- • Epoxy-Coated Carbon Steel Body
- • Straightening Vanes for Optimum Flow Profiles (Available)
- • Corrosion-Resistant Impeller made of durable polymer materials, factory calibrated to retain accuracy
- • Magnetic Coupling System isolates register and drive system from flow and allows unrestricted impeller movement
- • Flexible Cable Drive
- • Instantaneous Flow-rate Indicator and Totalizer
- • Removable Top-Plate Assembly
- • Heavy Gauge Stainless Steel Support
- • Self-Cleaning Durable Design

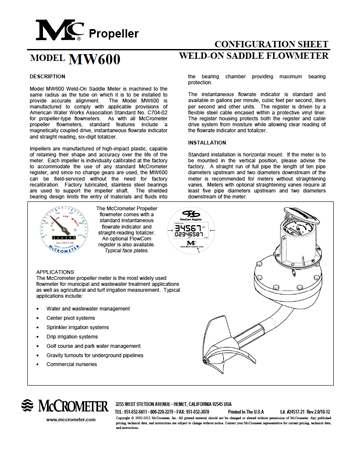

- Click The Product Data Sheet Image Above To Download In PDF
