McCrometer MT100
The Model MT100 is manufactured to comply with the applicable provisions of the AWWA Standard No. C704-02 and latest revisions for propeller type flowmeters. The threaded ends of the MT100 allow it to be directly coupled into an existing pipeline. The carbon steel flow tube has a fusion-bonded epoxy coating offering excellent corrosion protection. As with all McCrometer propeller flowmeters, standard features include a magnetically coupled drive, instantaneous flowrate indicator and straight-reading, six-digit totalizer.
- • Designed to operate in real-world environments, these flowmeters can measure turbulent flows and fluids containing debris, suspended solids, and other contaminants accurately
- • 2-6” line sizes
- • Long-lasting Stainless Steel Ball Bearings
- • Epoxy-Coated Carbon Steel Body
- • Straightening Vanes for Optimum Flow Profiles (Available)
- • Corrosion-Resistant Impeller made of durable polymer materials, factory calibrated to retain accuracy
- • Magnetic Coupling System isolates register and drive system from flow and allows unrestricted impeller movement
- • Flexible Cable Drive
- • Instantaneous Flow-rate Indicator and Totalizer
- • Heavy Gauge Stainless Steel Support
- • Self-Cleaning Durable Design

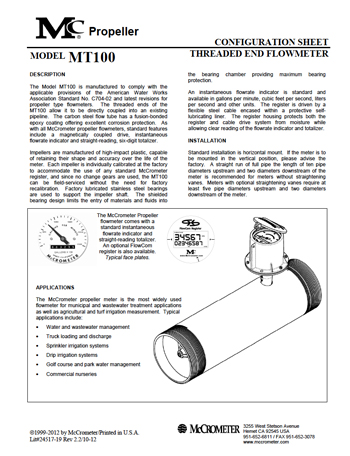

- Click The Product Data Sheet Image Above To Download In PDF
