McCrometer Irrigation Solutions
McCrometer MF100
The MF100 is a flanged end flowmeter that fits 2-12” line sizes. It carries an AWWA Class D rating and delivers a 75 psi Pressure Rating. Its optional flow straightening vanes can easily be welded in the tube.
- • Designed to operate in real-world environments, these flowmeters can measure turbulent flows and fluids containing debris, suspended solids, and other contaminants accurately
- • 2-12” line sizes
- • Long-lasting Stainless Steel Ball Bearings
- • Epoxy-Coated Carbon Steel Body
- • Straightening Vanes for Optimum Flow Profiles (Available)
- • Corrosion-Resistant Impeller made of durable polymer materials, factory calibrated to retain accuracy
- • Magnetic Coupling System isolates register and drive system from flow and allows unrestricted impeller movement
- • Flexible Cable Drive
- • Instantaneous Flow-rate Indicator and Totalizer
- • Heavy Gauge Stainless Steel Support
- • Self-Cleaning Durable Design

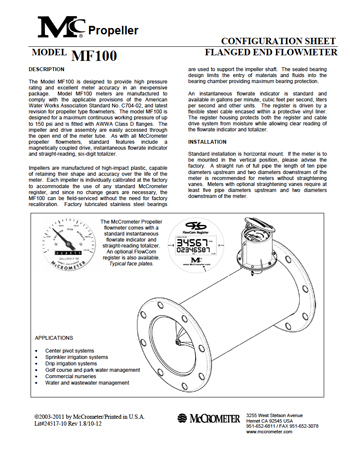

- Click The Product Data Sheet Image Above To Download In PDF
