Water Specialties OF120
A velocity type open flow meter, the OF120 is a velocity propeller type featuring a magnetic drive and sealed housing. It complies with the applicable provisions of AWWA. It has a sealed indicator and is equipped with a six digit sealed totalizer. The bronze meter head is welded to a drop pipe of 2 1⁄2" O.D. bronze tubing of sufficient strength to meet the length dimension shown on the drawings. The gearbox is also bronze, sealed and filled with a high-grade lubricant. The drive mechanism is magnetically driven from the propeller, through a ceramic sleeve magnetic coupling and is isolated from the water flow by means of an o-ring sealed housing. A rigid stainless steel vertical shaft is required from the miter gear frame to the indicator-totalizer.
- • Velocity Propeller Type
- • Magnetic Drive
- • Long Life Water Lubricated Ceramic Bearings
- • Sealed Meter Mechanism Magnetic Drive Indicator
- • Open Flow Meter
- • Totalizer sizes 10-72”
- • Equipped with six-digit sealed totalizer
- • Accurate within 2% of true flow within a range of to GPM or an approved equal
- • Meter head is bronze and is welded to a drop pipe of 2” O.D. with bronze tubing
- • Bronze Gearbox

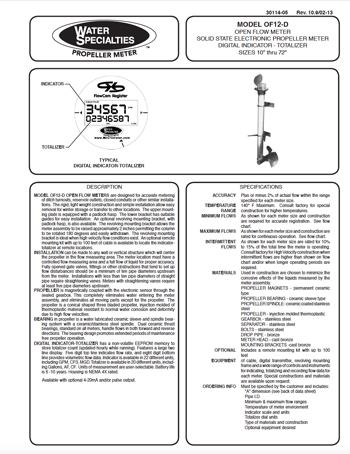

- Click The Product Data Sheet Image Above To Download In PDF
